Ventus V9600 Controller

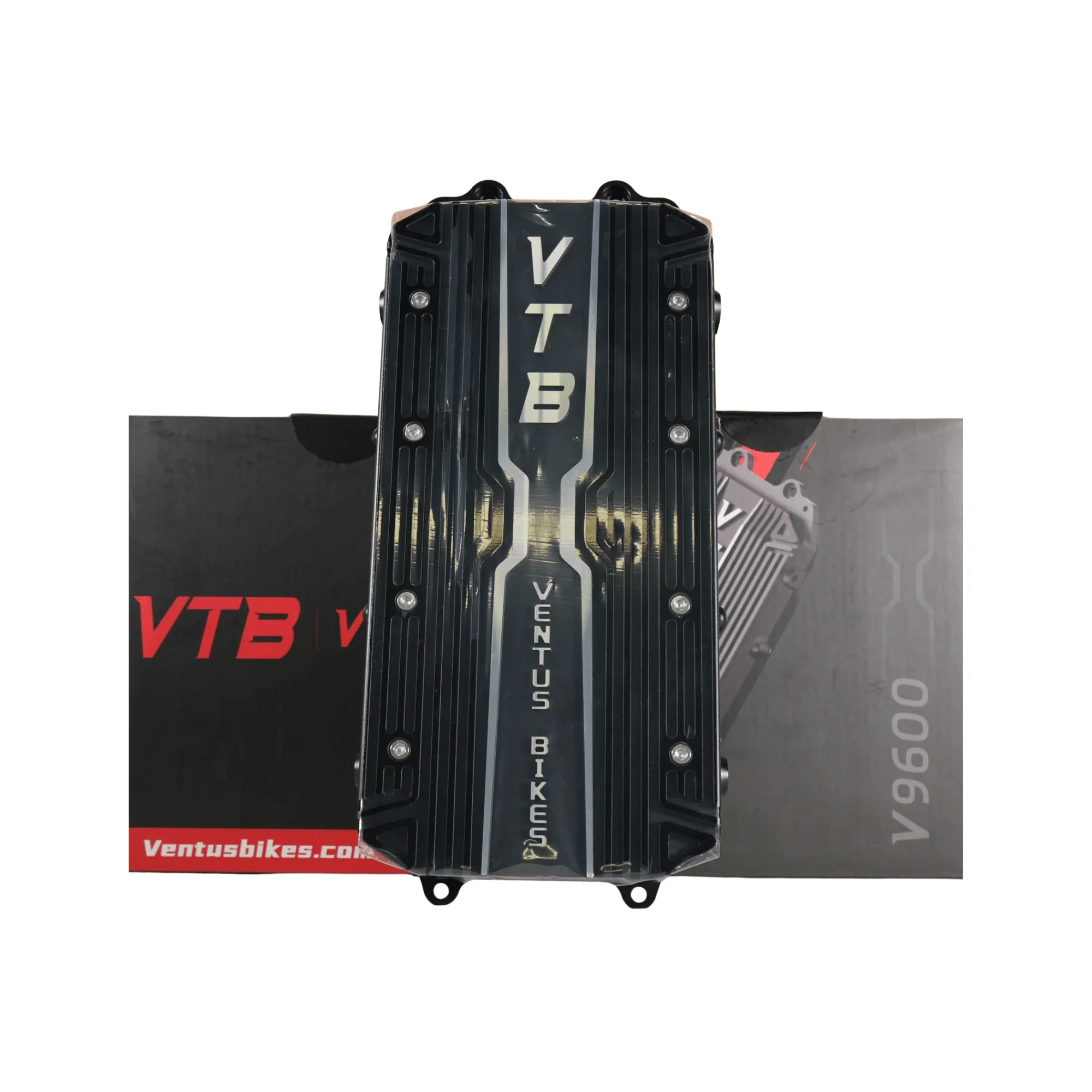

VTB V9600 Controller with LCD & Hand Controls

The VTB V9600 Controller is a high-performance, fully-featured system designed for light electric motorcycles and e-bikes. It delivers precise control, customisable throttle response, and maximum efficiency, making it compatible with VTB Beast motors, Surron Light Bee and Ultra Bee, TALARIA models, and 79 Bike Falcon.

Specifications

• Maximum Bus Phase Current: 500 A nominal / 960 A peak

• Peak Power: 44 kW

• Operating Voltage Range: 48 V – 84 V (Limit: 30 V – 99 V)

• Operating Temperature Range: −25 °C to 80 °C

• Control Type: Sinusoidal Vector Control (SVC)

• Motor Compatibility:

  • VTB Beast 28 kW & 35 kW

  • Surron Light Bee & Ultra Bee (factory)

  • TALARIA Sting & X3

  • 79 Bike Falcon

  • QS165, LTXS, Sotion FW01, Sotion Talaria

Features

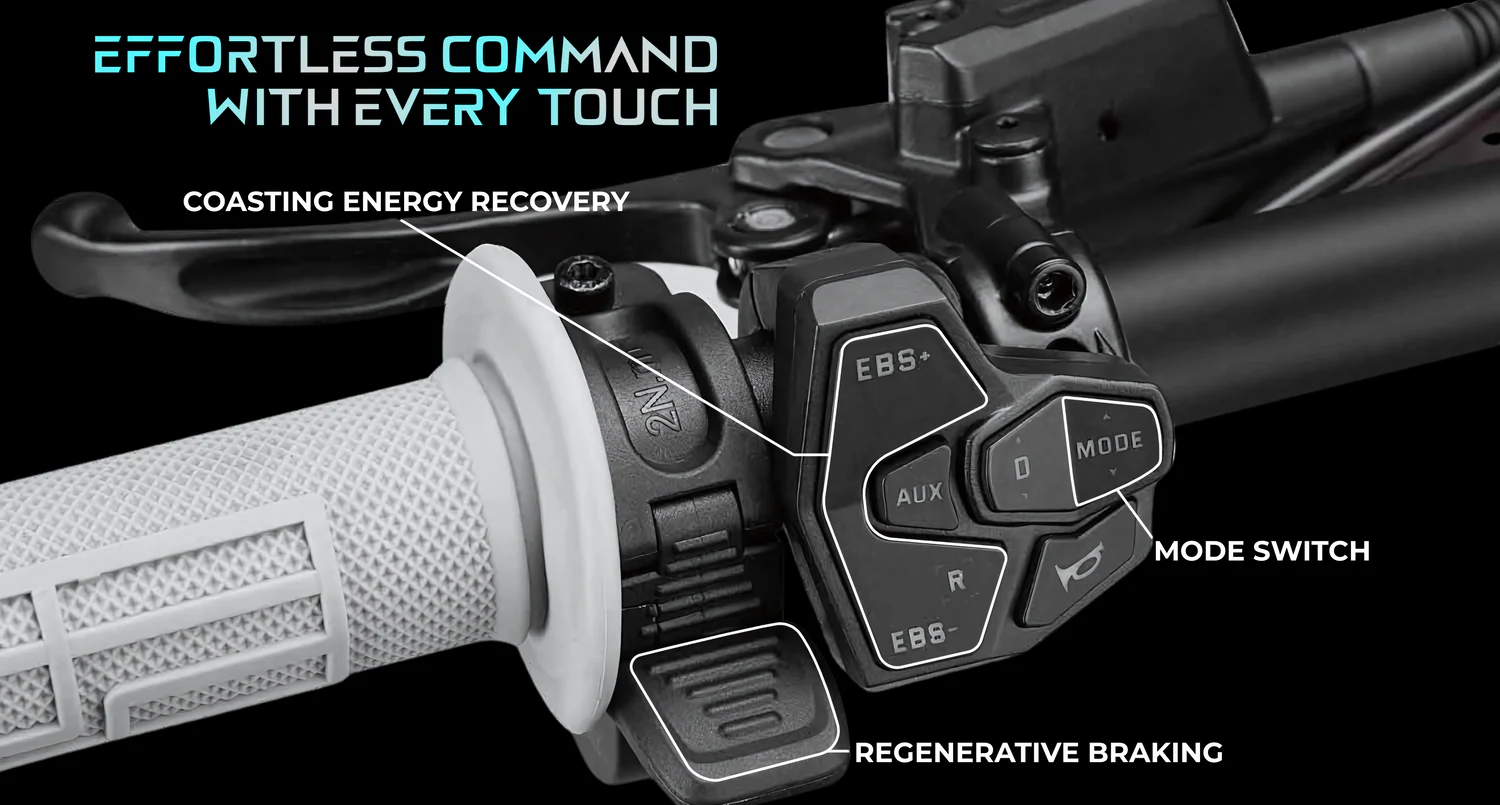

• Throttle & Power Control:

  • Fine-tunable throttle response

  • Customizable super-linear throttle handle

  • Customizable throttle curve, burst power, high-speed compensation

  • Adaptive low-throttle compensation at low battery levels

• Power Modes: 3 selectable levels

• Riding Modes: 5 modes for terrain or rider preference

• Regenerative Braking:

  • 5 modes

  • Linear regenerative braking saves up to 30% energy

• Smart Integration:

  • Bluetooth connection to battery BMS

  • Sensory unlocking

  • Full-function APP compatible with iOS & Android

• Cooling & Durability:

  • CNC-machined radiator

  • IP67 waterproof for full system

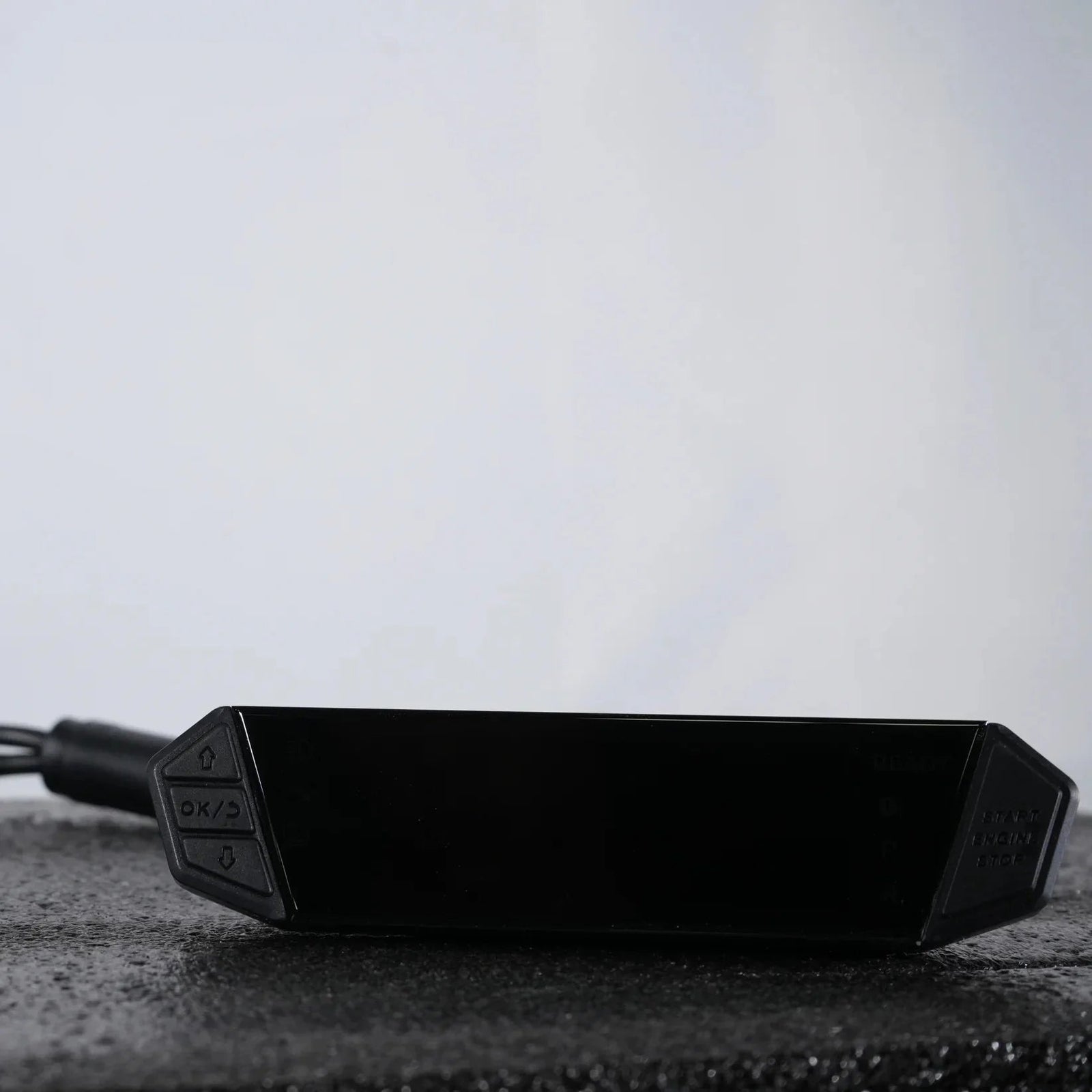

• Display: High-resolution color LCD shows speed, battery, power, and diagnostics

Compatible Batteries

• Series 16–22, supports factory and upgraded packs for Surron, TALARIA, 79 Bike, and VTB systems

Package Contents

• Controller ×1

• Color LCD Instrument Panel ×1

• Instrument Panel Bracket ×1

• Switch Assembly ×1

• Thumb Throttle ×1

• Vehicle-specific Adapter Cable ×1

• Version: 1.7

WARRANTY & SUPPORT:
Standard 12 month warranty through E Moto NZ, with technical guidance available for installation and tuning.
