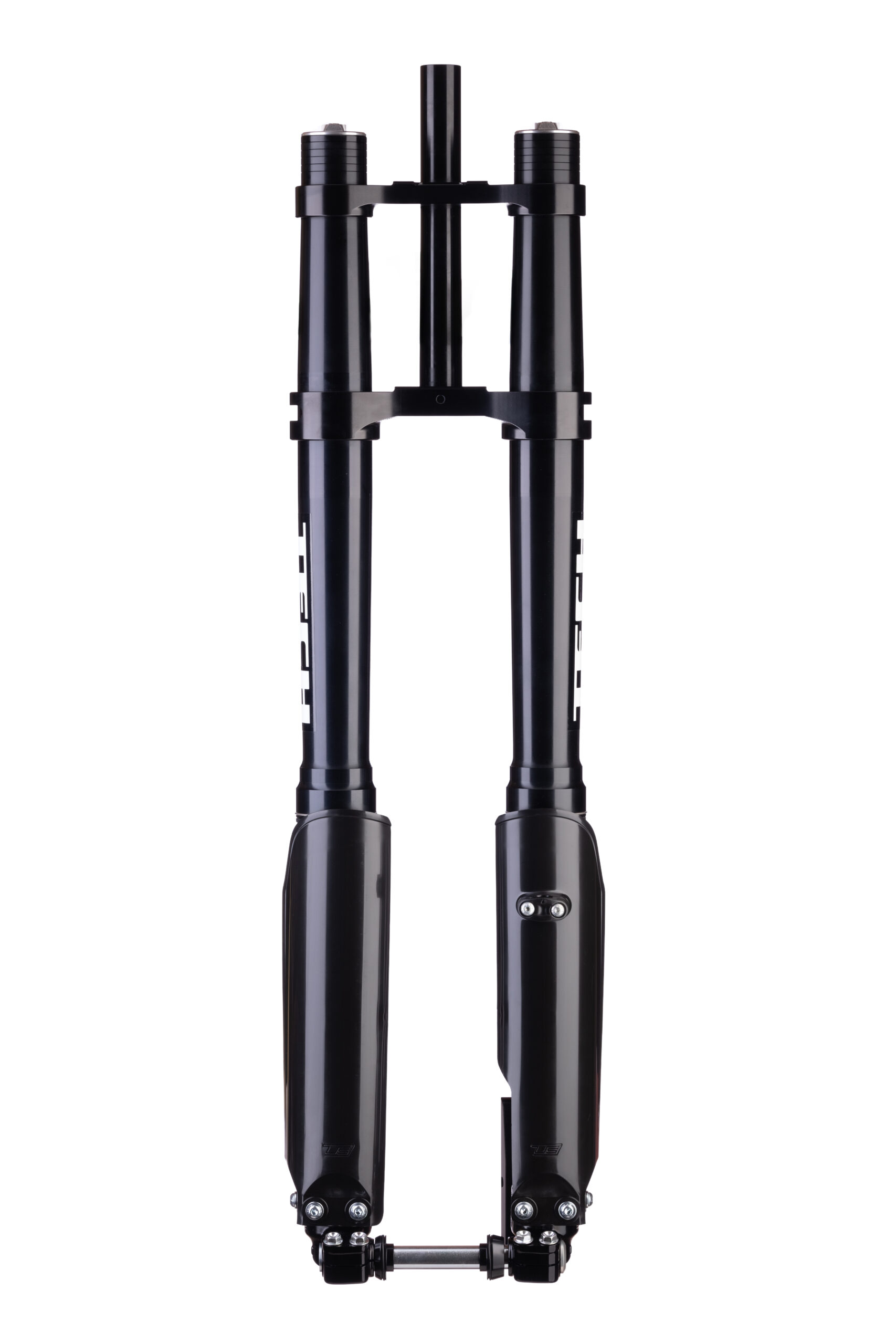

Tech Suspension E39 Dual Crown Fork

The E39 Fork is purpose-built to dramatically improve the performance, stability, and front-end control of lightweight electric motos. Designed specifically for bikes like the Light Bee and Talaria platform, it delivers motorcycle-level strength and adjustability in a refined, bolt-on package.

Whether you’re riding trails, jumping, racing, or pushing higher speeds, the E39 provides the support and confidence standard forks simply can’t match.

Motorcycle-Inspired Design

• 39mm hard-plated chromoly steel stanchions

• Upside-down (USD) dual-crown construction

• Designed to eliminate flex under heavy braking and hard landings

• Dual coil spring system with hydraulic damping

• Specifically tuned for the weight and speed of lightweight E-Motos

This is a true moto-style fork, not a modified MTB unit.

Performance & Adjustability

• 230mm travel

• External rebound and compression adjustment

• High- and low-speed compression tuning

• Factory tuned for riders 60–80kg (medium spring rate)

• Five spring combinations available to suit different rider weights and riding styles

Easily adjustable to match trail riding, motocross-style riding, or aggressive off-road use.

Compatibility & Fitment

Supplied as a complete kit for direct installation on most lightweight E-Moto platforms.

Includes:

• Triple clamps

• Axle

• Wheel spacer

Crown Options:

• Standard drop crown supports 21” wheels

• Flat crown option available for 19” wheels

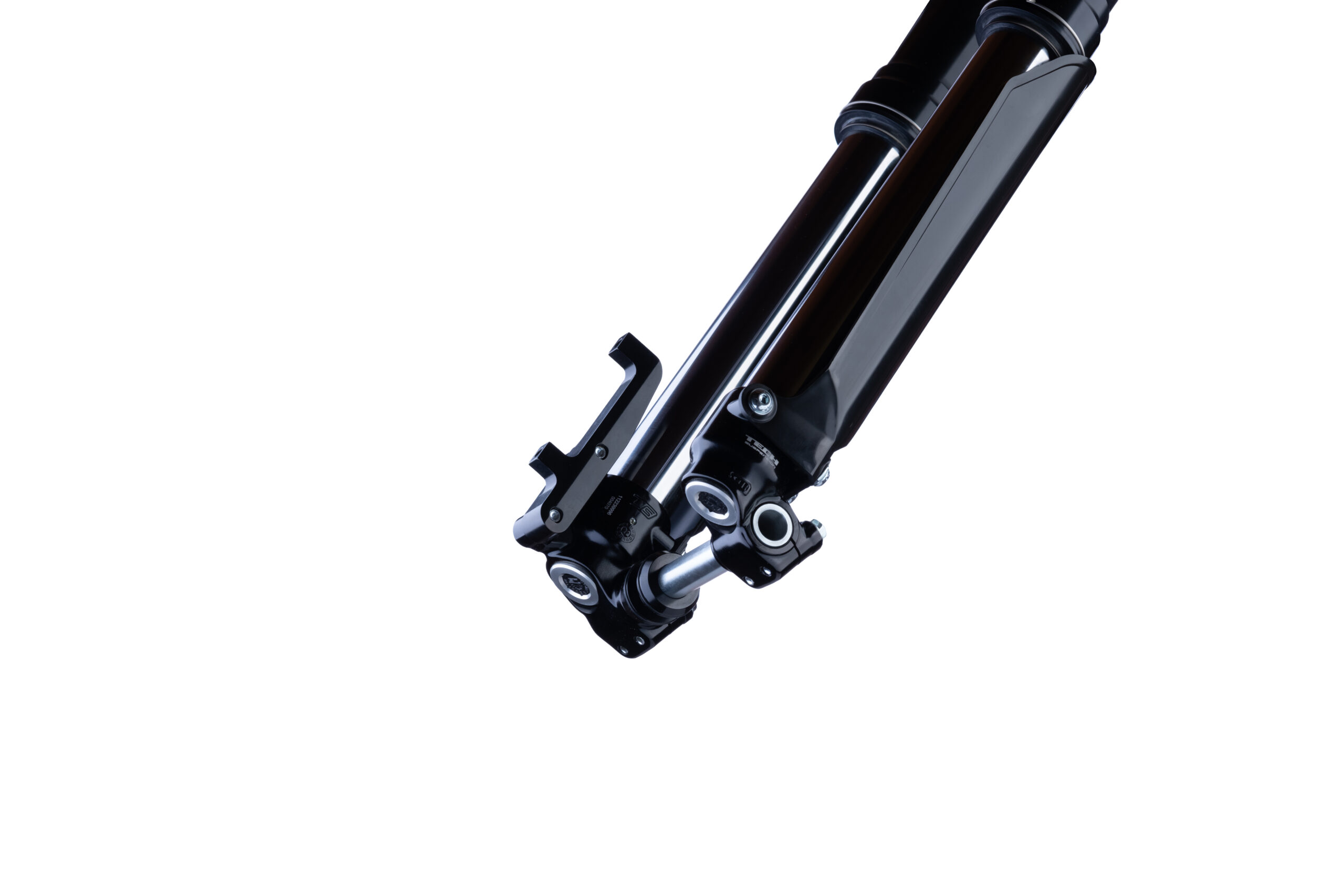

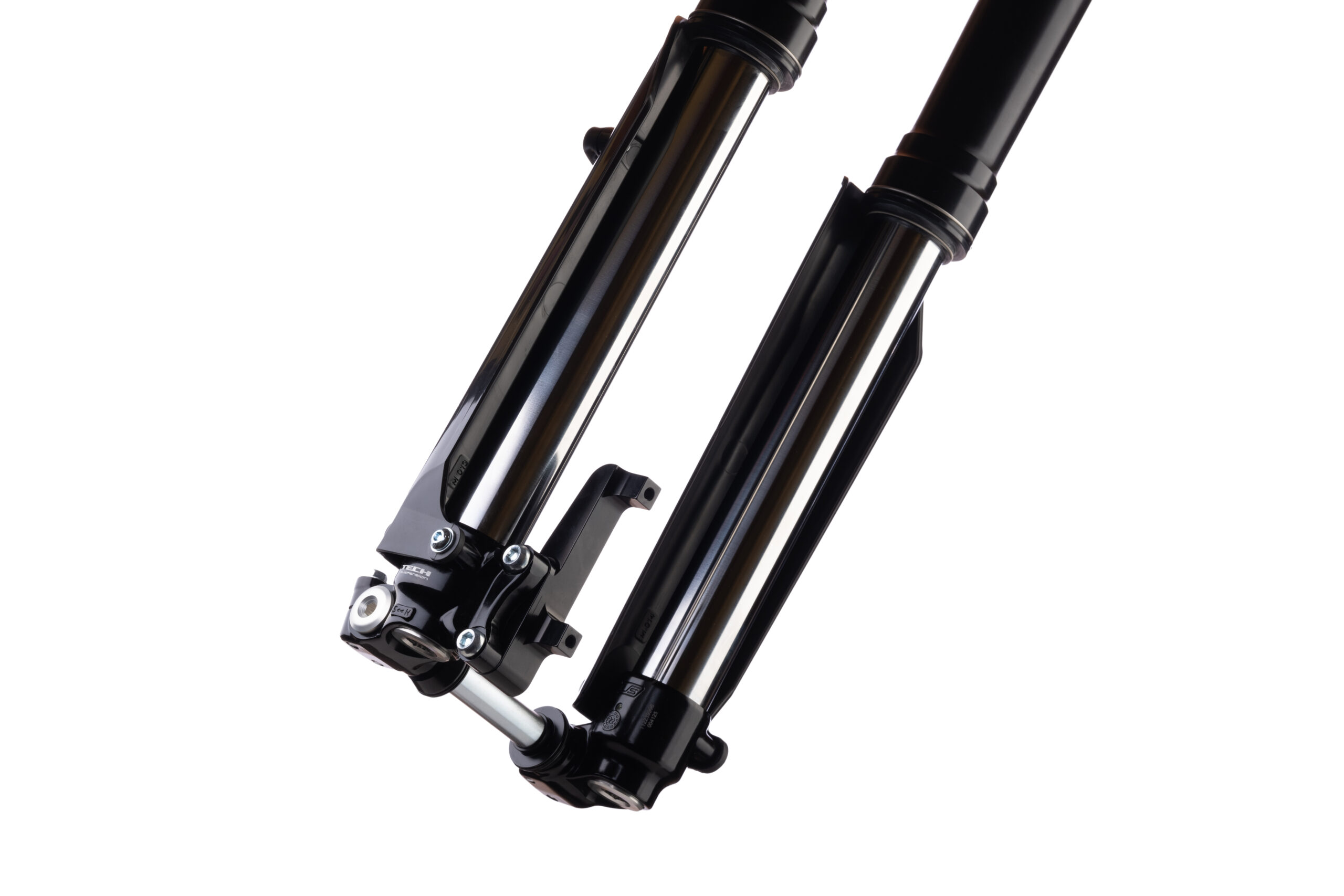

Brake Mount:

• PM6 caliper mount

• Supports 160–220mm brake discs

• Adapter available for up to 230mm discs

Durability & Build Quality

• Anodized aluminum outer tubes

• Hard-chrome-treated steel stanchions

• Titanium black coated stanchion tubes

• Low-friction bushings

• Heavy-duty seals

• Premium suspension oil for consistent damping

• Plastic fork guards included for stanchion protection

Built to handle aggressive riding and demanding conditions.

Technical Specifications

• Stanchion Diameter: 39mm hard-plated chromoly steel

• Travel (Stroke): 230mm

• Overall Length: 770mm

• Axle to Crown: ±635mm

• External Adjustment: Rebound + compression

• Weight: 14.8 lbs

Compatible Models

• Talaria Sting MX3

• Talaria Sting MX4

• Talaria Sting MX5

• Talaria Sting XXX

• Surron Light Bee S

• Surron Light Bee X

• E Ride Pro S

• E Ride Pro SS

• E Ride Pro SS 2.0

• 79 Bike

• Mantis

• Mantis X

• Ventus One

• Ventus One+

• Zero XB

• Rerode R1

• Rerode Ewatt 2.0

(If unsure about fitment, contact us before purchase.)
