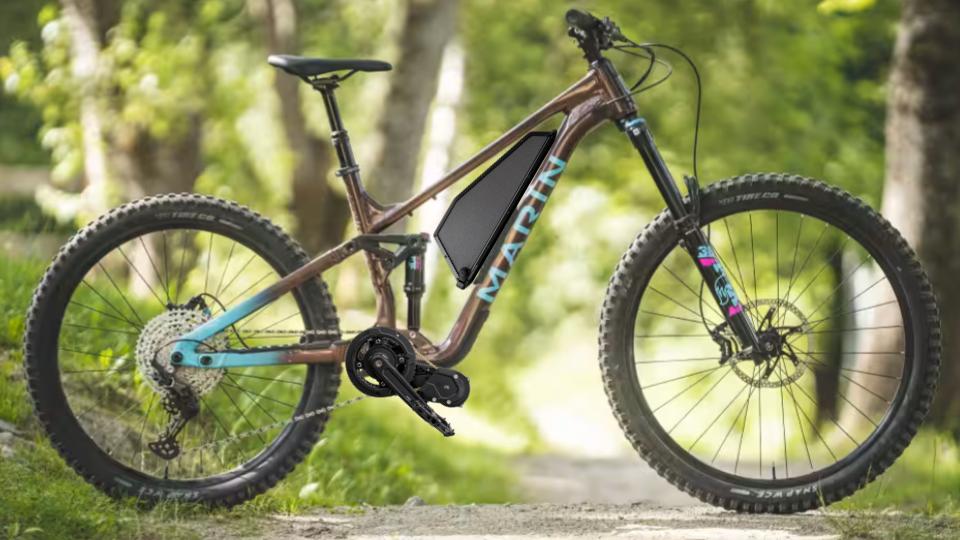

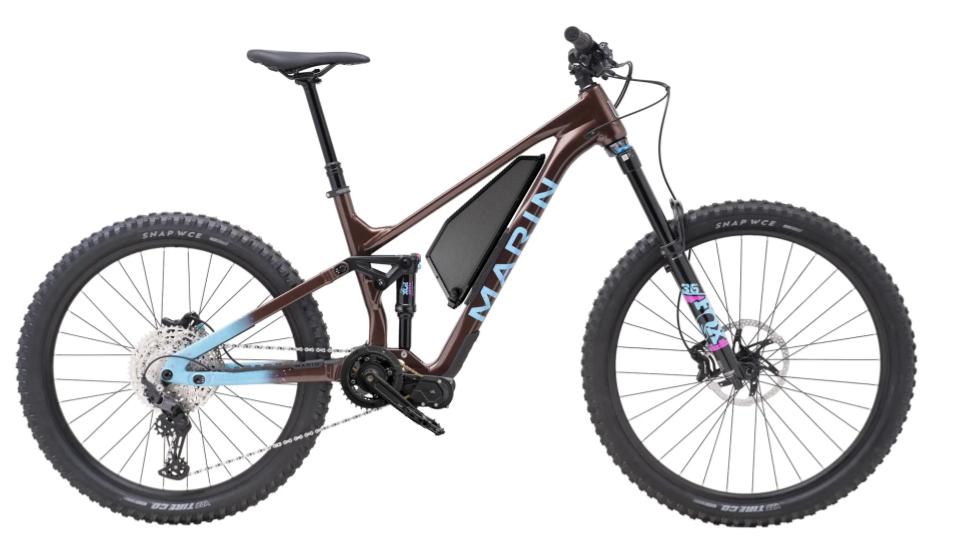

MARIN ALPINE TRAIL 1 (CYC X1 PRO GEN 4)

CUSTOM ELECTRIC ENDURO, MARIN ALPINE TRAIL 1 (CYC X1 PRO GEN 4)

Built for riders who want the power of an electric dirt bike with the weight and handling of a high-end mountain bike, this custom Marin Alpine Trail 1 delivers serious performance in a lightweight, aggressive enduro platform.

Combining Marin’s long-travel enduro frame with the CYC X1 Pro Gen 4 mid-drive system, this setup produces massive torque and power while maintaining the agility and ride feel of a proper MTB. Perfect for steep climbs, technical trails, and high-speed off-road riding.

KEY SPECIFICATIONS:

Motor: CYC X1 Pro Gen 4 mid-drive system
Power: Up to 5kW peak
Torque: Up to 250 Nm
Voltage Range: 36V–72V compatible
Drive System: Chain-driven mid-drive with reduction gear

Battery: 65V high-capacity lithium battery (Samsung cells)
Battery Features: Advanced BMS, removable mount system
Range: Rider dependent (typically 40–100+ km depending on setup)
Charge Time: Fast charger included

Frame: Marin Alpine Trail 1 – Series 4 alloy frame
Wheel Setup: Mullet (29” front / 27.5” rear)
Rear Travel: 160mm MultiTrac LT suspension
Front Travel: 170mm

Fork: Fox 36 Rhythm – 170mm travel
Rear Shock: Fox Float Performance

Drivetrain: Shimano Deore 12-speed
Brakes: TRP Slate EVO 4-piston hydraulic brakes (203mm rotors)

Wheels: Marin alloy, tubeless ready
Tyres: Vee Tire Co. Snap WCE (Enduro spec)

Seatpost: TranzX dropper post
Extras: Integrated “Bear Box” downtube storage

CYC SYSTEM FEATURES:

• High-performance torque sensor for natural pedal feel
• Full app tuning and power customization
• Multiple throttle options (thumb / half-twist / full twist)
• Heavy-duty drivetrain components (KMC chain, ISIS crankset)
• Built-in bash guard for off-road protection
• Waterproof wiring and connectors

PERFORMANCE HIGHLIGHTS:

• Dirt bike-level torque in a lightweight MTB platform
• Massive climbing ability with mid-drive gearing advantage
• Fully adjustable enduro suspension for aggressive riding
• Tunable power delivery for trail or high-performance use
• Significantly lighter than traditional e-motos

WARRANTY:

12 month warranty through E Moto NZ
(Covers motor kit and manufacturer-related faults)

DELIVERY OPTIONS:

Nationwide shipping available across New Zealand
Delivery and build time typically takes around 30 days depending on build and parts availability

Please choose carefully. As a small business, we’re only able to offer refunds or returns in accordance with the NZ Consumer Guarantees Act and our Refunds & Returns Policy.
